YS-61XAK三邊封顆粒包裝機
YS-61XAK 三邊封顆粒包裝機
1、適用于食品、醫藥、化工、化妝品行業中顆粒、粉劑、液體、醬料等物品的計量包裝，如：干果、種子、辣椒面、咖啡粉、谷物粉、辣椒油、牛奶等。
Suitable for the metering and packaging of granules, powders, liquids, pastes and other items in the food, pharmaceutical, chemical, and cosmetics industries, such as dried fruits, seeds, chili powder, coffee powder, grain powder, chili oil, and milk.
２、可自動完成制袋、計量、下料、封合、分切、計數、且可根據客戶要求配置打印批號等功能。
All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
３、觸摸屏操作，PLC 控制，驅動步進電機控制袋長，性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差范圍控制在1℃以內。
The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
４、包裝材料：復合膜。
Packaging materials：composite film.

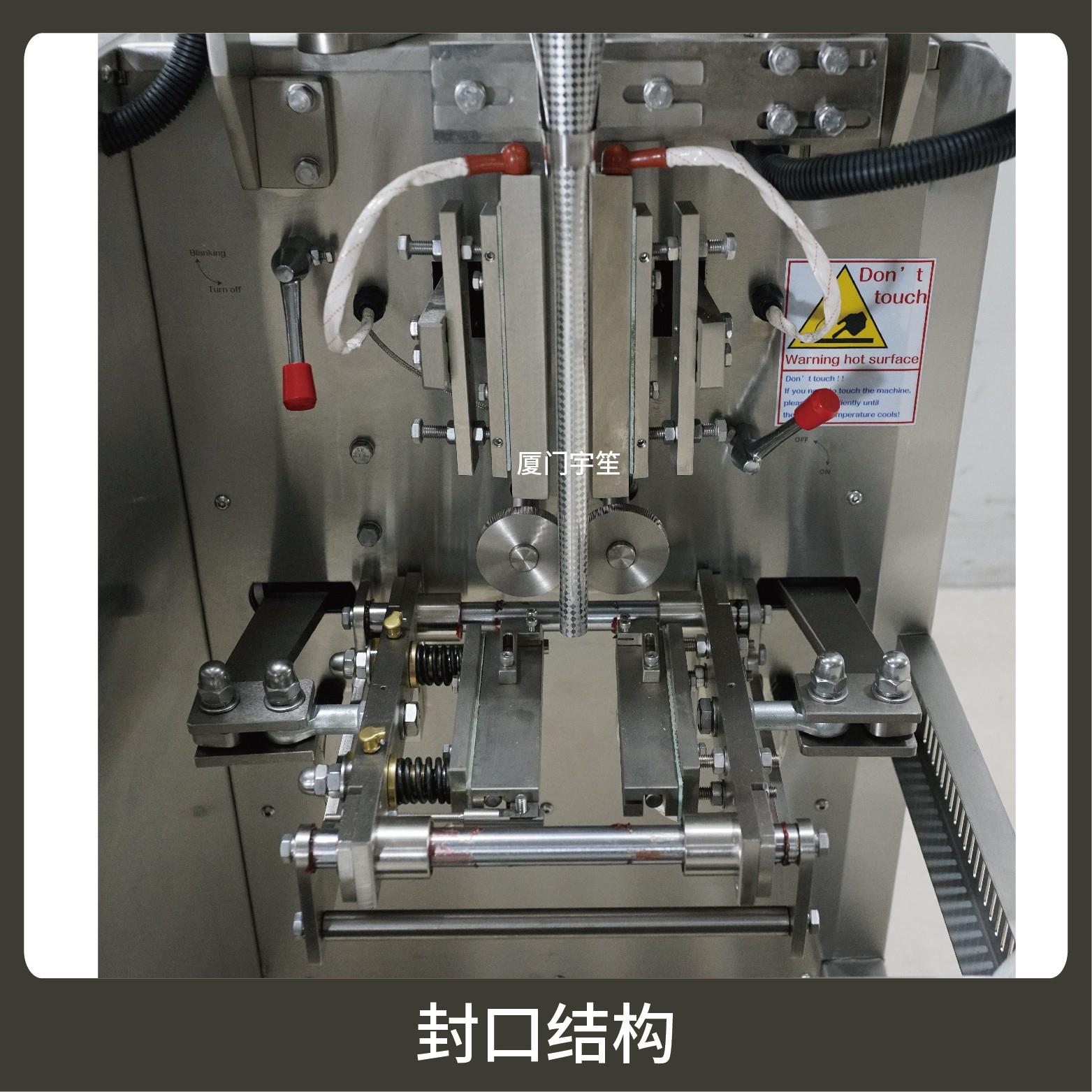

封口方式 Sealing Type
三邊封口 四邊封口 背封封口
Three sides Sealing/ Four sides Sealing/ Back sealing
技術參數
Technical Parameters
計量范圍：1 - 100 g
Measuring Scope
制袋尺寸：長( L ) : 30 - 170 mm
Bag Size 寬( W ) : 30 - 130 mm
包裝速度：20 - 100 bags/min
Packing Speed
外型尺寸：790 *1000 * 1760 mm
Dimension ( L * W * H )
整機重量：235 kg
Weight
總 功 率：220V / 50Hz / 1.4kw
Total Power
1、適用于食品、醫藥、化工、化妝品行業中顆粒、粉劑、液體、醬料等物品的計量包裝，如：干果、種子、辣椒面、咖啡粉、谷物粉、辣椒油、牛奶等。
Suitable for the metering and packaging of granules, powders, liquids, pastes and other items in the food, pharmaceutical, chemical, and cosmetics industries, such as dried fruits, seeds, chili powder, coffee powder, grain powder, chili oil, and milk.
２、可自動完成制袋、計量、下料、封合、分切、計數、且可根據客戶要求配置打印批號等功能。
All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
３、觸摸屏操作，PLC 控制，驅動步進電機控制袋長，性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差范圍控制在1℃以內。
The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
４、包裝材料：復合膜。
Packaging materials：composite film.
計量范圍：1 - 100 g
Measuring Scope
制袋尺寸：長( L ) : 30 - 170 mm
Bag Size 寬( W ) : 30 - 130 mm
包裝速度：20 - 100 bags/min
Packing Speed
外型尺寸：790 *1000 * 1760 mm
Dimension ( L * W * H )
整機重量：235 kg
Weight
總 功 率：220V / 50Hz / 1.4kw
Total Power
適用于食品、醫藥、化工、化妝品行業中顆粒、粉劑、液體、醬料等物品的計量包裝，如：干果、種子、辣椒面、咖啡粉、谷物粉、辣椒油、牛奶等。
Suitable for the metering and packaging of granules, powders, liquids, pastes and other items in the food, pharmaceutical, chemical, and cosmetics industries, such as dried fruits, seeds, chili powder, coffee powder, grain powder, chili oil, and milk.
