YS-61XAF三邊封粉末包裝機

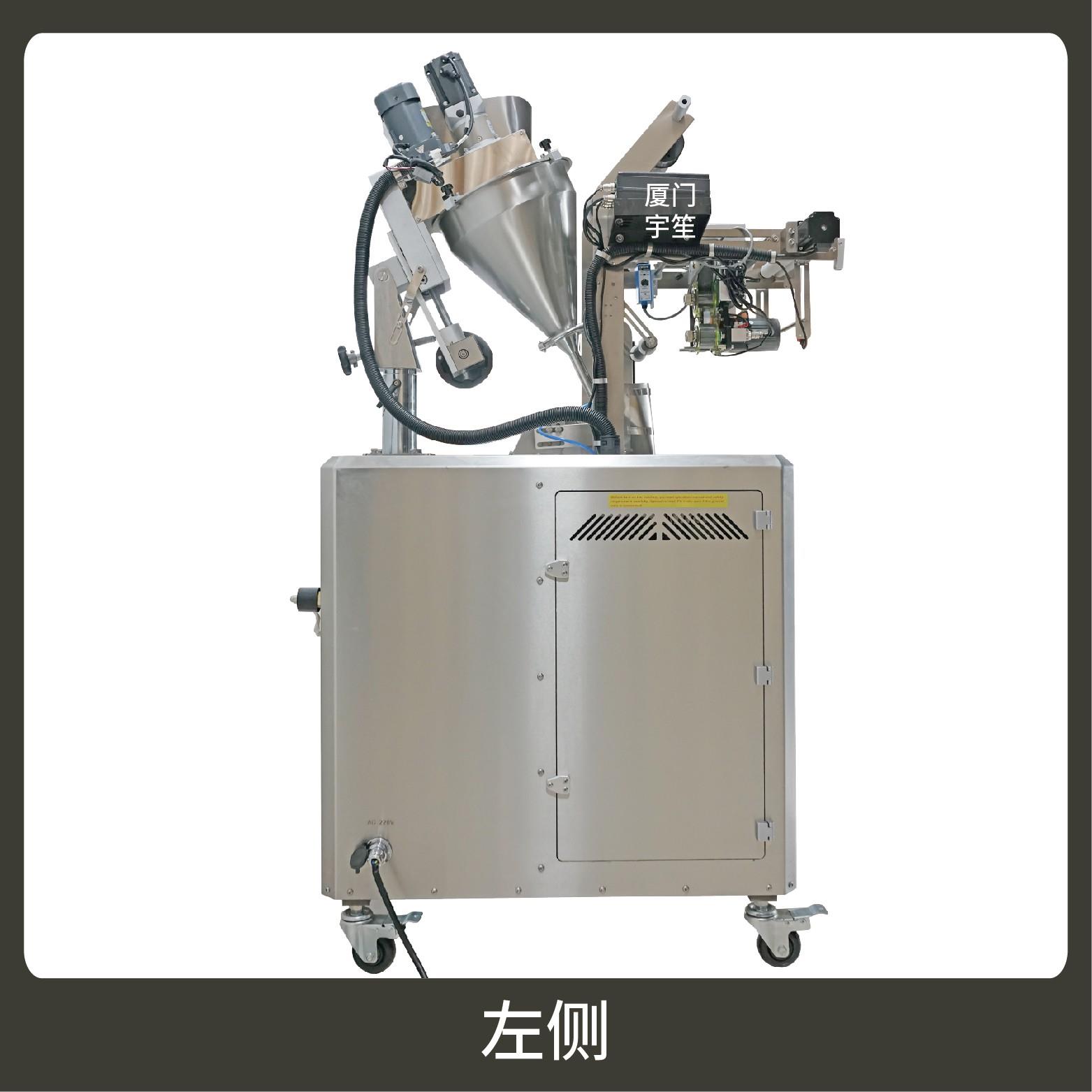

YS-61XAF Powder packing machine

YS-61XAF 粉末包裝機

1、適用于食品、醫藥、化工、化妝品行業中粉劑物品的計量包裝。

The machine is suitable for  the food, medicine, chemical industry, cosmetics industry of powder of measurement packing.

2、可自動完成制袋、計量、下料、封合、分切、計數、且可根據客戶要求配置打印批號等功能。

All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.

3、觸摸屏操作,PLC 控制,驅動步進電機控制袋長,性能穩定、調整方便、檢測準確。智能式溫控儀,PID調節,保證將溫度的誤差范圍控制在1℃以內。

The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.

4、包裝材料:復合膜。

Packaging materials:composite film.


封口方式 Sealing Type

三邊封口           四邊封口      背封封口

Three sides Sealing/ Four sides Sealing/ Back sealing



技術參數

Technical Parameters



計量范圍:1 - 100 g

Measuring Scope

制袋尺寸:長( L )  :  30 - 170 mm

Bag Size ( W )  :  30 - 130 mm

包裝速度:30 - 70 bags/min

Packing Speed

外型尺寸:990 * 730* 1620 mm

Dimension ( L * W * H )

整機重量:230 kg

Weight

總 功 率:220V / 50-60Hz / 2.5kw

Total Power



1、適用于食品、醫藥、化工、化妝品行業中粉劑物品的計量包裝。

The machine is suitable for  the food, medicine, chemical industry, cosmetics industry of powder of measurement packing.

2、可自動完成制袋、計量、下料、封合、分切、計數、且可根據客戶要求配置打印批號等功能。

All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.

3、觸摸屏操作,PLC 控制,驅動步進電機控制袋長,性能穩定、調整方便、檢測準確。智能式溫控儀,PID調節,保證將溫度的誤差范圍控制在1℃以內。

The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.

4、包裝材料:復合膜。

Packaging materials:composite film.


計量范圍:1 - 100 g

Measuring Scope

制袋尺寸:長( L )  :  30 - 170 mm

Bag Size ( W )  :  30 - 130 mm

包裝速度:30 - 70 bags/min

Packing Speed

外型尺寸:990 * 730* 1620 mm

Dimension ( L * W * H )

整機重量:230 kg

Weight

總 功 率:220V / 50-60Hz / 2.5kw

Total Power

1、適用于食品、醫藥、化工、化妝品行業中粉劑物品的計量包裝。

The machine is suitable for  the food, medicine, chemical industry, cosmetics industry of powder of measurement packing.
